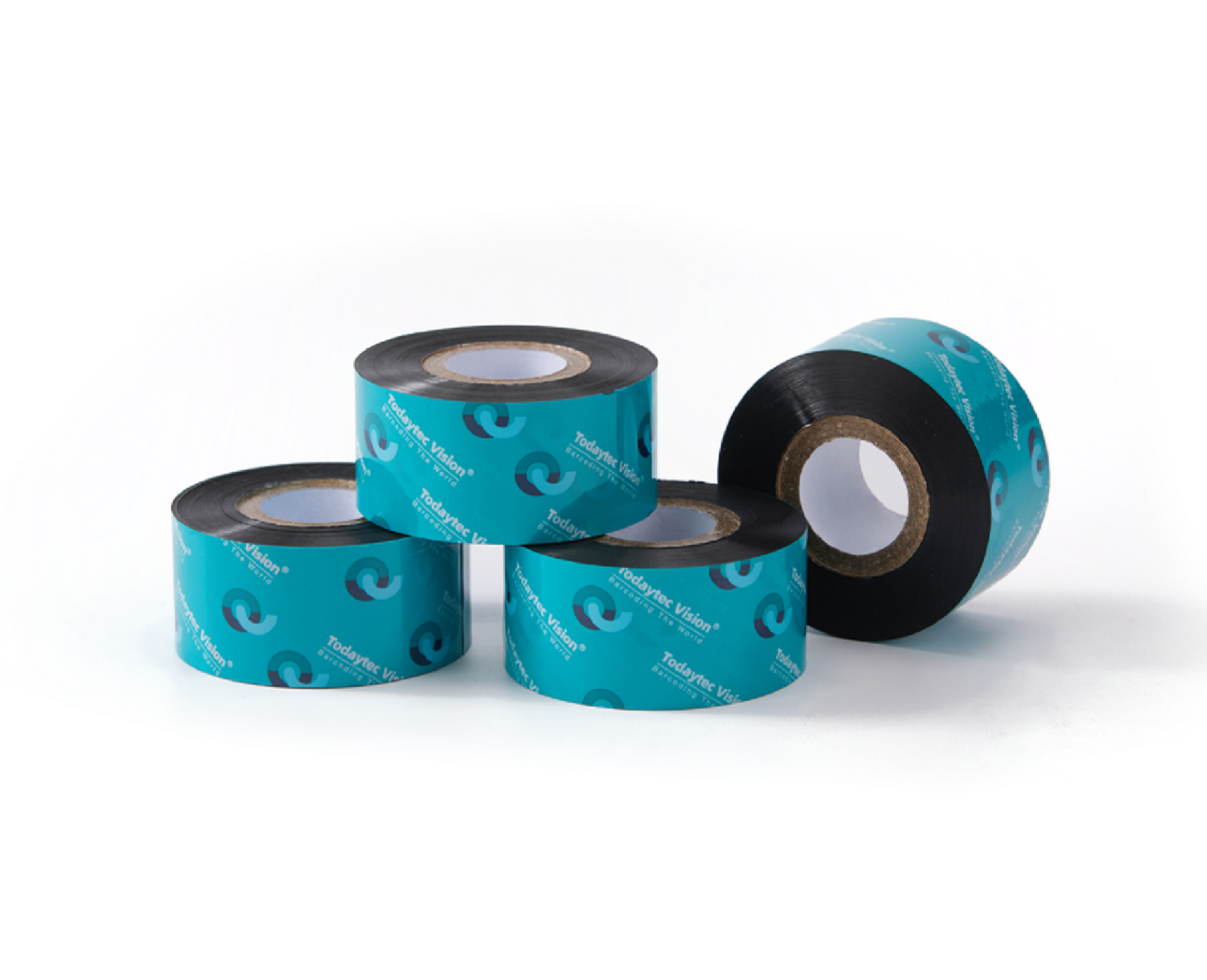

T677
Premium TTO/Near-edge Wax/Resin Ribbon
T677 is an Premium Near-Edge/TTO Wax/Resin Ribbon designed for high adaptability, durability, and high-speed printing. Its exceptional scratch resistance and resistance to edible oils make it ideal for flexible packaging applications in food, daily consumer products, and more.
-
Superior Substrate Compatibility
-
Excellent Scratch Resistance
-
High Speed Printing
-
Superior Printing Performance
Print Quality
-
Blackness0.5 2.5
2.05 ODR -
Sharpness0 100
95 -
0° Barcode0 100
100 -
90° Barcode0 100
90 -
Min. printable character0 6
4 pt -
Graphics0 100
98
Sensitivity
-
Print Speed
-
Printing Speed
Durability Test
Physical Resistance
Slight exposure begins after approx. X cycles with a 680G weight load.
-
Scratch Resistance
-
Smudge Resistance
-
Alcohol90%
-
Gasoline92#
-
Braking FluidBosch Dot4 Plus
- 350
- 150
- 0
- 0
- 0
- 300 200 100
- 100 200 300 次
-
Washing resistanceThe printed label was soaked in water at 100°C for 2 hours and then check whether the imprint of the label was significantly faded.
-
No significantly faded
-
Dry-cleaning resistanceThe printed label was placed in a closed cold box at -17°C for 20 hours and then check whether the imprint of the label was significantly fallen off
-
No significantly fallen of
-
PropertiesPET FilmThickness: 4.0μmRibbonThickness: 6.7±0.3μmInk82±3℃Storage ConditionTemperature: 5~35℃, Humidity: 20~80%, Validity Period: 12 months
-
Product Comparison
-
T677
-
TDM665
-
TDM669
-
Substrate compatibilityScratch resistanceHigh-speed printing performanceSubstrate CompatibilityDurabilityHigh-speed Printing Performance
-
