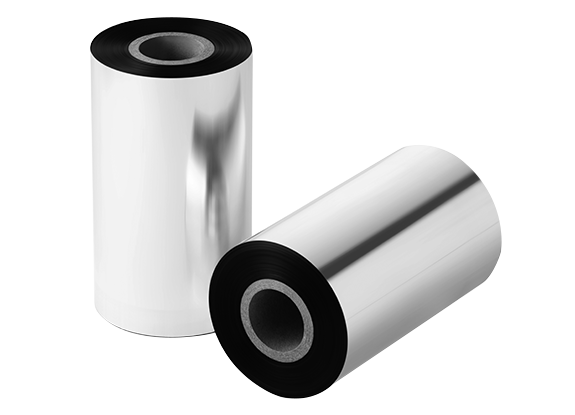

Wax Ribbons
TDW131

TDW131, as a premium enhanced wax ribbon,TDW131, as a premium enhanced wax ribbon,lts engineered silicon-based backcoating can help protect print heads, effectivelyextending their service life.

Compare Request Samples
Printing Quality
Sensitivity
Substrate Compatibility
Resistance Test
Recommended Applications
Properties
Certifications And Permits
Printing Quality
Darkness/Rendition absolute
2.1 odr
0
0.5
1
1.5
2
2.5
0°Barcode
100
0
20
40
60
80
100
90°Barcode
73
0
20
40
60
80
100
Sharpness
85
0
20
40
60
80
100
Min.printable character
4 pt
Graphics
95
0
20
40
60
80
100
Sensitivity
8 ips
200 mm/s
0
8
16
24
32
40
0
200
400
600
800
1000
Printing speed
TDW131
Low
Ln
High
Printing temperature
Substrate Compatibility
l1
l2
l3
TDW131
L3
L1
L2
L1
TDW121
L3
L1
L1
L1
TDW133
L3
L1
L2
L1
Uncoated Paper
Writing paper,vellum...
Coated Paper
Art paper,art printing paper,high gloss paper...
Synthetic Paper
Synthetic paper
Film labels
PP/PET/PE/BOPP/PVC..
Resistance Test
Resistance test
Slight exposure begins after approx. X cycles with a 680G weigh
Smudge resistance/ 80 cycles
Smudge resistance/ 200 cycles
Alcohol/ 0 cycles
95% Industrial alcohol
Gasoline/ 0 cycles
92# Gasoline
Brake fluid/ 0 cycles
Bosch dot4 plus
Water resistance test
With a printed label in a washing machine with 4‰ soapy water at 40℃ for 30 minutes, observe theprint attenuation
Yes
No
Low temperature test
With a printed label in a washing machine with 4‰ soapy water at 40℃ for 30 minutes, observe theprint attenuation
Yes
No
Recommended Applications
Receipt and delivery labels for warehouses
Logistics
Pharmaceuticals
Daily chemicals
Pre-packaging
Refrigeration Industry
Hot working
Retail labels
Digital & electronics
Clothing tags
Labels for automobile industry
Chemical industry
Nursery gardens and flowers
Production lines
Wooden products
Steel & iron manufacturing
Fixed assets
Electrical equipment
Mechanical equipment
Luggage
Garment Labels
Shoe tongues
Jewelry Labeling
Laminated flexible package
Properties
PET film

Thickness：4.5μm

Ribbon

Thickness：8.5±0.3μm

Ink

Color：Black/Red/Green/Blue

Melting point：73±3℃

Storage Conditions

Temperature：5-35℃

Humidity：20-80%

Validity period：12months

Specification

Tiny roll

Ribbon width：25-300mm

Ribbon length ：Within 1000 meters


Jumbo roll

Ribbon width：680/ 910/905/940mm

Ribbon length：16300/17500m

Certifications And Permits
REACH
ROHS2.0
ISO9001/14001
MSDS
HALOGEN
ISEGA
